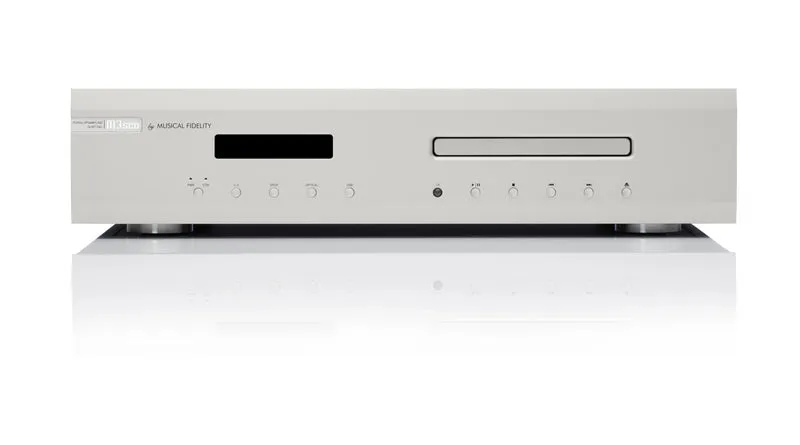

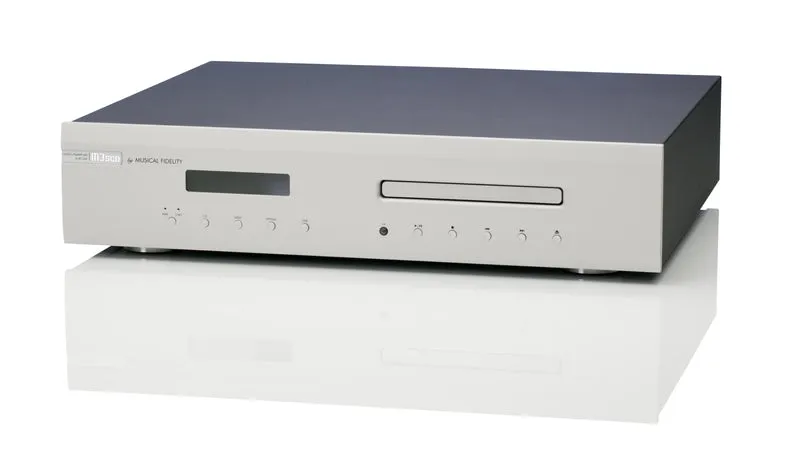

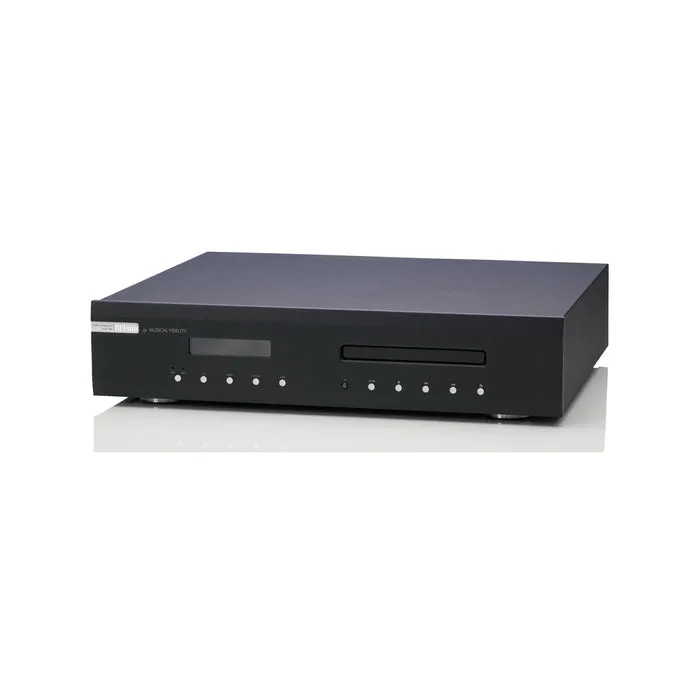

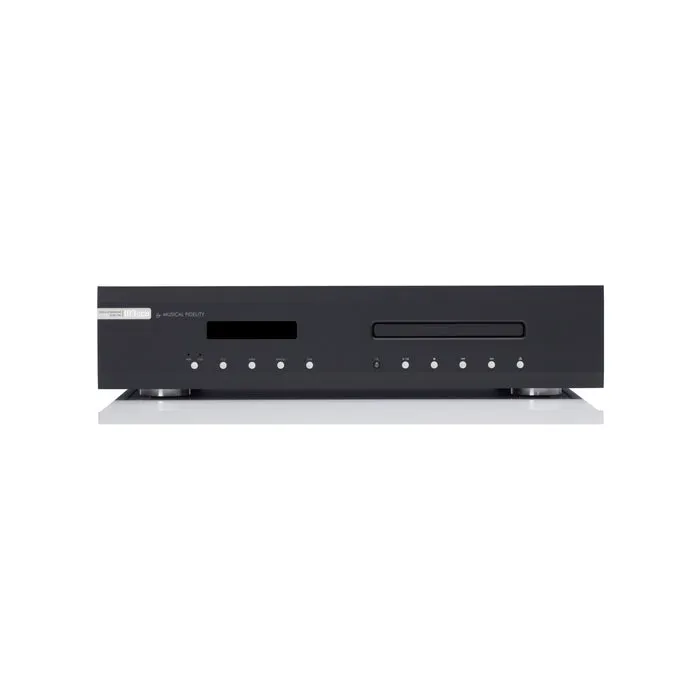

The M3scd is a CD Player and stand-alone DAC with sublime performance. The M3scd has been designed to give outstanding CD reproduction and to be a digital hub. In addition to CD it has 3 digital inputs: coax, optical and asynchronous USB.
Warranty:
1 year manufacturer's warranty
Features:
- CD player and digital hub
- Excellent technical performance
- Very good CD readability
- Multiple digital inputs - coax, optical and asynchronous USB
- Very low jitter
- Excellent build quality and convenient size
Video Review:
In addition to CD it has 3 digital inputs: coax, optical and asynchronous USB. This makes it particularly useful for set top boxes and/or TV sound improvement. The technical performance is excellent; it has very low distortion, extremely low jitter, excellent signal-to-noise ratio, extremely flat frequency response, exemplary linearity and excellent channel separation.
All in all the M3scd gives excellent CD replay and can act as a versatile digital hub at the same time.
Technical Specifications:
| Performance | |
| Jitter | <135 picoseconds peak to peak |
| Frequency Response | 10Hz to 20 kHz -0.2dB max. |
| Signal to Noise Ratio | >117dB |
| THD( noise) | <0.003% 10Hz to 20 kHz |
| Linearity | <0.1dB down to -96dB |
| Channel Separation | 105dB 20 Hz to 20 kHz |
| Hardware | |
| DAC | 24 bit Delta-Sigma (bit stream) dual differential 8x over-sampling |

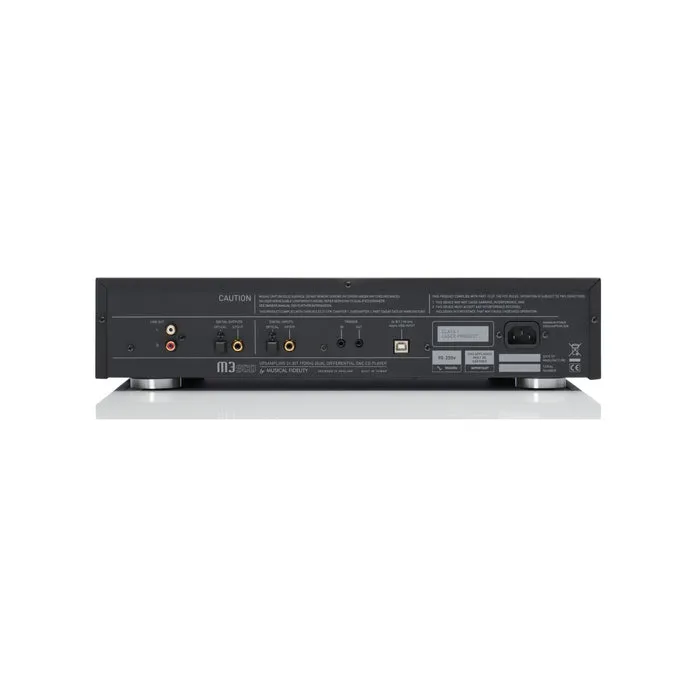

| Outputs | |
| Outputs | 1x line level RCA |
| 1x RCA coaxial connector (Digital SPDIF) | |
| 1x Toslink optical connector (Digital SPDIF) | |
| 1x Trigger output - 3.5mm (1/8”) mono jack 12V DC | |
| Inputs | |
| Inputs | 1x RCA coaxial connector SPDIF 32-192kHz |
| (16-24 bit stereo PCM) | |
| 1x TOSLINK optical connector 32-96kHz | |
| (16-24 bit stereo PCM) | |
| 1x USB type ‘B’ connector - | |
| Asynchronous data stream at up to 24-bit/96kHz | |
| Trigger in | |
| General | |
| Dimensions - WxHxD (mm) | 440 x 100 x 380 |
| Weight (unpacked / packed) | 6.05 kg / 9.9 kg |
